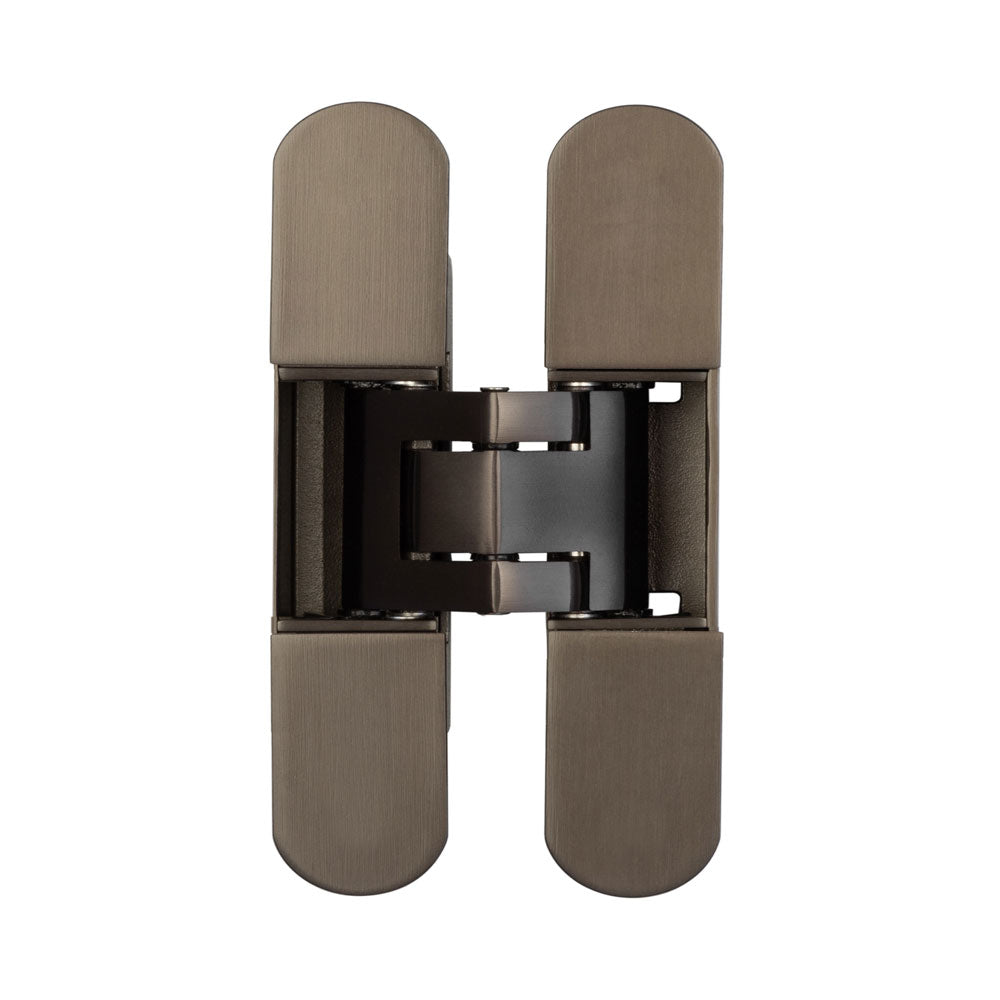

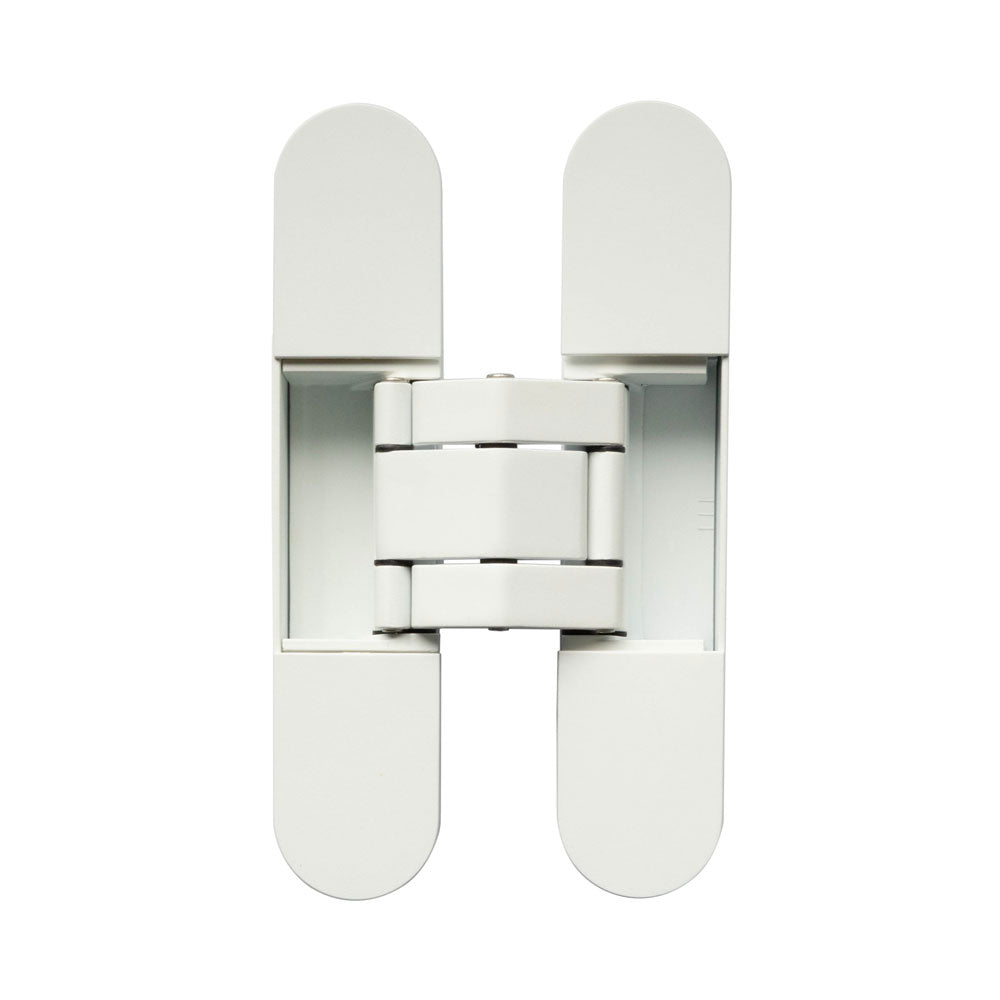

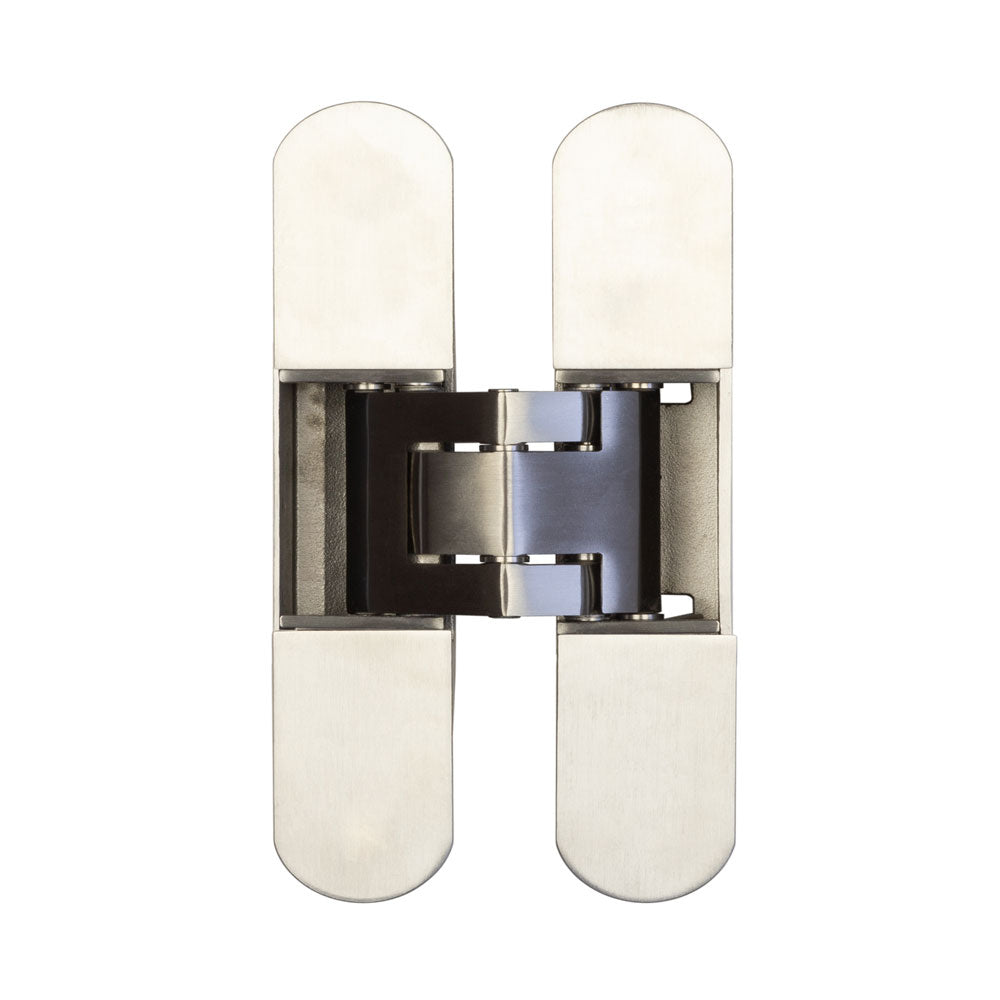

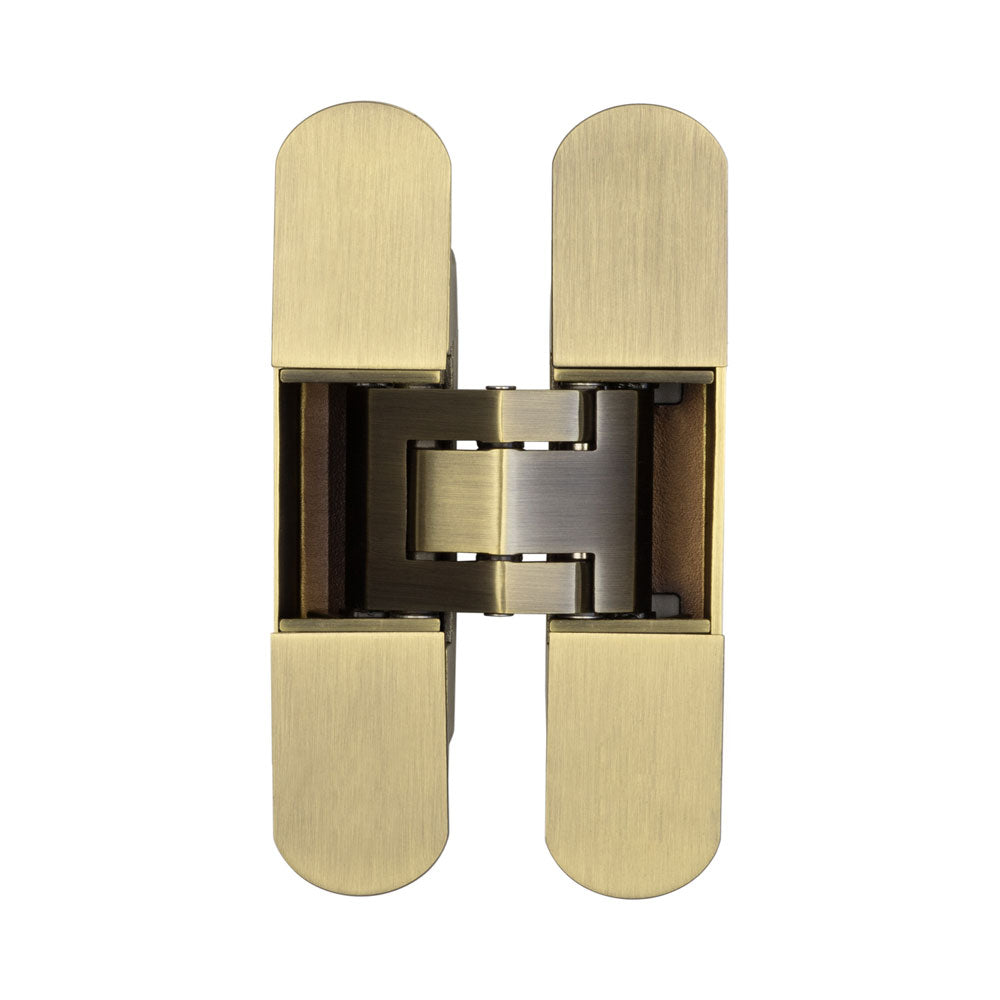

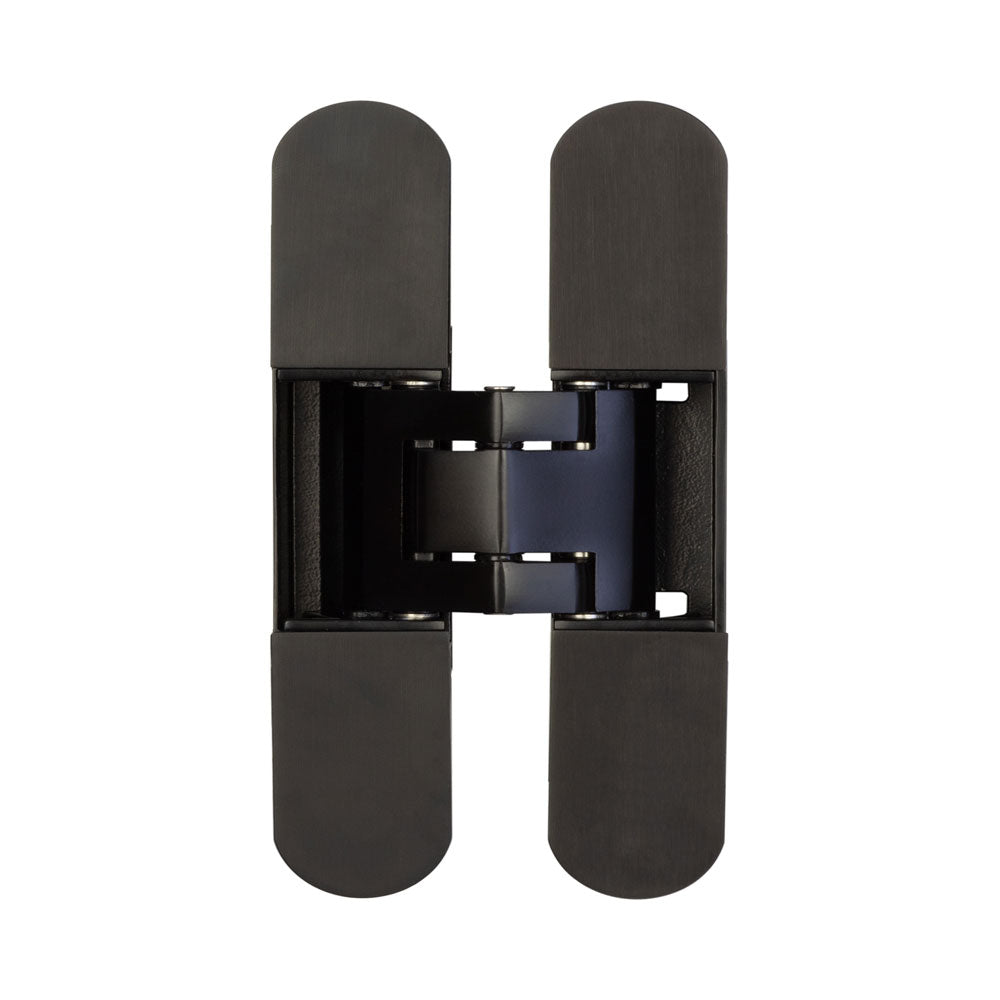

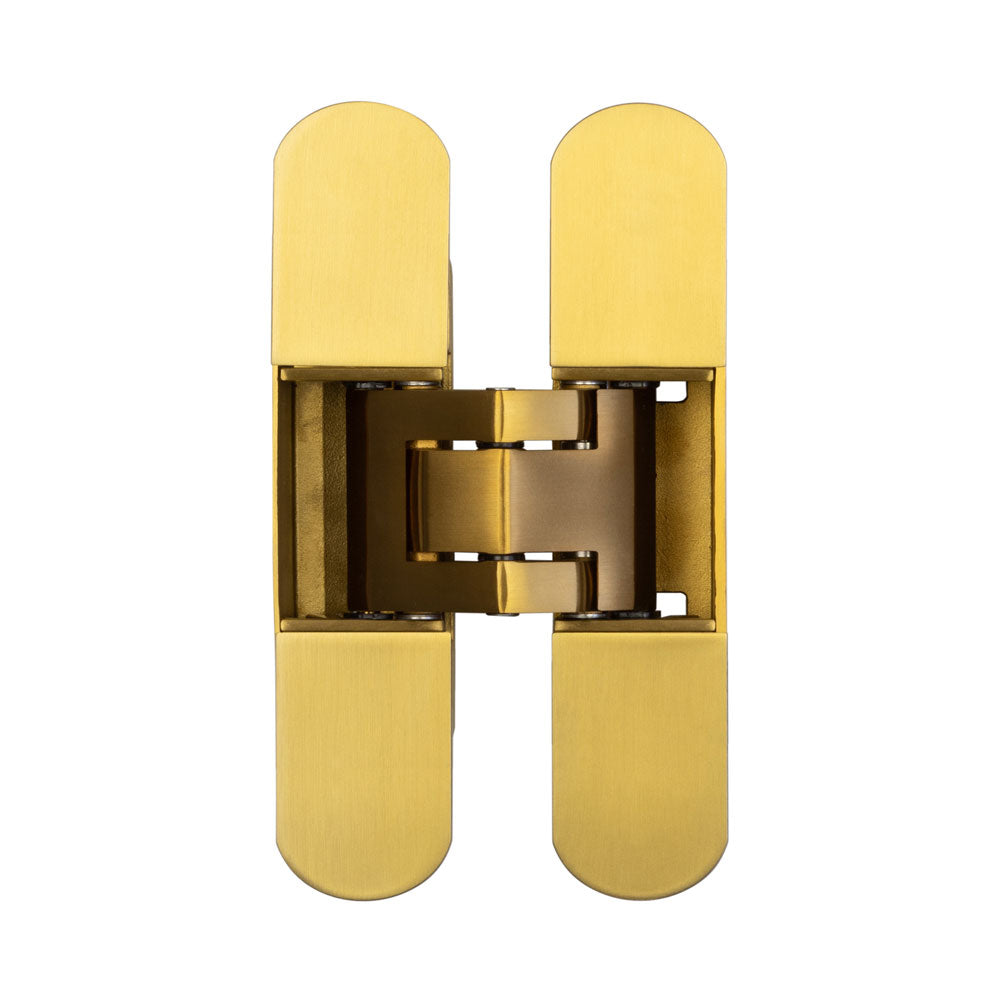

Ghost 140mm 3D Concealed Hinges

The Ghost 140mm 3D Concealed Hinge is a fully hidden hinge for internal residential and commercial doors, built for strength, smooth operation and a flush finish. It adjusts in three directions for precise alignment during installation. Sold as a single hinge.

KEY FEATURES

• Suitable For: Flush, unrebated quality timber doors
• Finish: Antique Brass, Black, Dark Bronze, Satin Brass, Silver and White
• Adjustment: 3D: height, depth and lateral
• Material: Zinc
• Fixings: Concealed, with removable cover plates. Supplied with 2 Allen keys, stainless steel wood screws and 4 cover plates
• Fire Rating: FD30 when used with 1mm graphite intumescent, sold separately
• Door Weight: Up to 60kg using 3 hinges
• Maintenance: Maintenance free
• Use: Internal, residential and commercial
• Mechanical Warranty: 5 years

DIMENSIONS

• Overall Size: 140 x 25 x 79.5mm
• Fixing Centres: 125mm
• Thickness: 7mm
• Suitable Door Thickness: 35 to 44mm

We recommend having the hinge in hand before any cutting or drilling.
