Jedo Pocket Door Kits

Everything you need to fit sliding pocket doors. The door glides into a concealed wall cavity, freeing the floor space a hinged door wastes. Choose the single kit for one door, or the double kit for a pair of doors that meet in the middle.

What's in the box

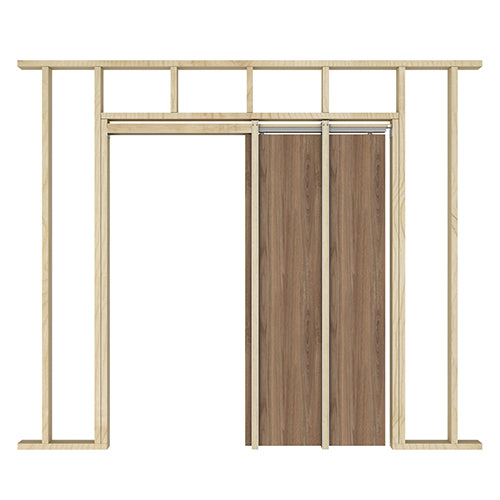

• Single Door: 1 × pocket door cavity frame system, track, hangers and fixings

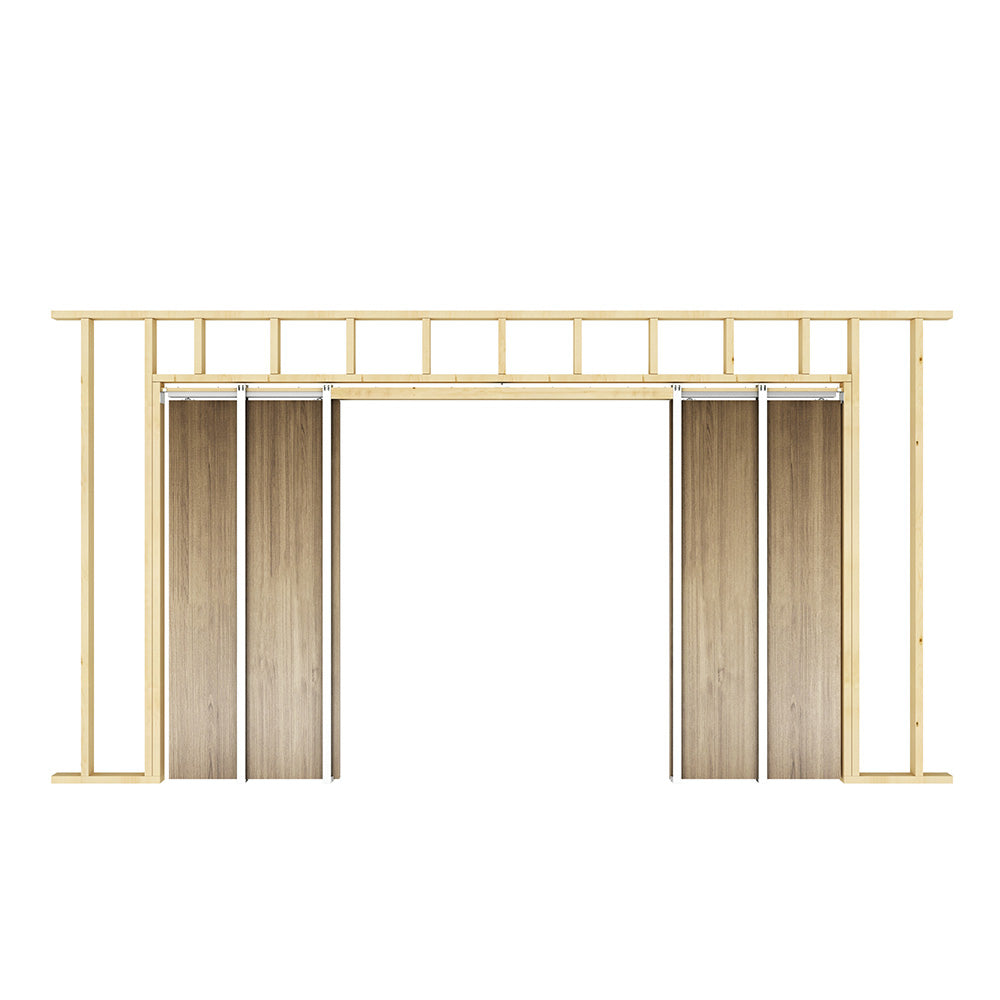

• Double Door: 2 × single pocket door kits and 1 × joining adaptor, with tracks, hangers and fixings

Soft close and soft open mechanisms are fitted as standard on both.

Key features

• Adjustable on site: suits doors up to 2040mm (H) × 860mm (W) × 44mm (T) per leaf
• Soft close and soft open as standard, so no bangs or slams
• Tested to 100,000 working cycles and rated for doors up to 100kg per leaf
• Takes 30-45mm thick doors. 35mm doors with raised beading or mouldings are fine, as long as the overall thickness stays within 45mm
• 5-year guarantee against manufacturing defects

Specification

• Stud work: Designed for 4 × 2 (89mm) stud and 12.5mm plasterboard
• Finished wall thickness: 114mm
• Internal cavity: 57mm, suits 30-45mm doors
• Max door size: 2040 × 860 × 44mm per leaf
• Max door weight: 100kg per leaf
• Cycle tested: 100,000 cycles
• Material: Anodised aluminium frame with timber liners
• Use: Internal, residential and commercial
• Guarantee: 5 years (manufacturing defects)

Please note: finishing jambs and brushes are not included, as jambs are made up by the fitter on site. Not suitable for fire-rated door installations. Doors sold separately.
